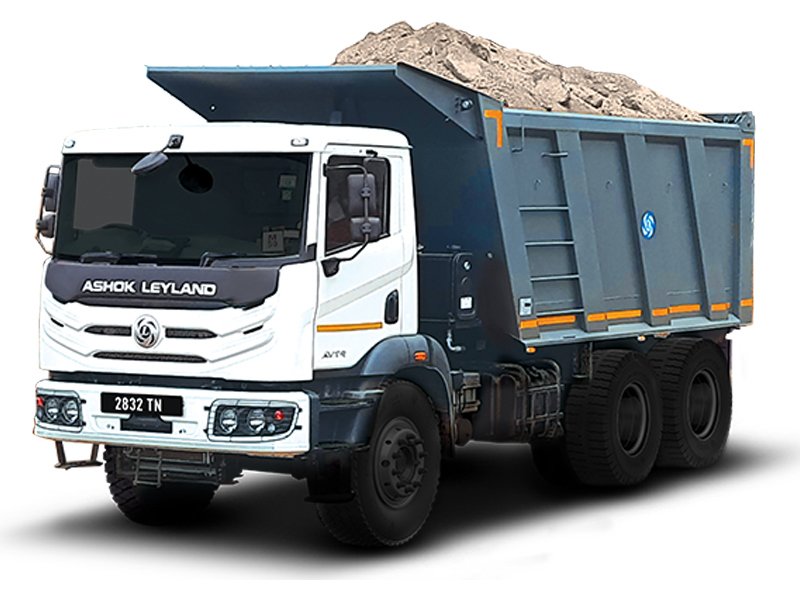

Ashok Leyland AVTR 2820-6x4
With 200 hp, 28-ton GVW, and multiple body configurations, Ashok Leyland AVTR 2820-6×4 BS-VI compliant tipper truck is built for performance in demanding terrains.
The Ashok Leyland AVTR 2820-6×4 is a robust and versatile heavy-duty tipper truck, engineered to meet the demanding requirements of construction, mining, and infrastructure projects. Built on Ashok Leyland’s innovative modular AVTR platform, this vehicle offers a blend of power, durability, and adaptability.
🔧 Key Specifications
-
Engine: H-Series BS6, 6-cylinder with i-Gen6 technology
-
Displacement: 5660 cc
-
Power Output: 200 HP @ 2400 rpm
-
Torque: 700 Nm @ 1200–1900 rpm
-
Transmission Options:
-
6-speed synchromesh with FGR 9.01:1
-
9-speed synchromesh with FGR 12.73:1
-
-
Axle Configuration: 6×4
-
Gross Vehicle Weight (GVW): 28,000 kg
-
Payload Capacity: Up to 17,500 kg
-
Fuel Tank Capacity: 300–375 liters
-
Mileage: Approximately 3–5 km/l, depending on load and terrain
-
Top Speed: 60 km/h
-
Wheelbase Options: 3900 mm and 4600 mm
-
Body Variants: Available in 14m³, 16m³, 18m³, and 20m³ box configurations
-
Cabin Options: M-Economy and G-Economy with D+1 seating
-
Tire Sizes: 295/90R20, 295/95D20, 11R20 16PR, 11×20 ML
💰 Price Range (Ex-showroom, India)
-
Base Variant: Starting at ₹34.50 lakh
-
Higher-Spec Variants: Up to ₹43.65 lakh, depending on configuration and features
-
RMC (Ready Mix Concrete) Variant: Approximately ₹46.50 lakh.
🛠️ Highlights
-
Modular AVTR Platform: Allows customization of axle configurations, loading spans, cabins, and drivetrains to suit specific operational needs.
-
Durability: Equipped with a forged I-section reverse Elliot-type front axle and a fully floating single-speed rear axle with a 6.5:1 ratio, ensuring strength and reliability.
-
Comfort & Safety: Features a spacious cabin with ergonomic design, and options for air conditioning to enhance driver comfort during long hauls.
-
Fuel Efficiency: Optimized for better fuel economy, reducing operational costs over time.
The Ashok Leyland AVTR 2820-6×4 stands out as a dependable choice for businesses seeking a heavy-duty tipper that combines performance, adaptability, and cost-effectiveness. Its modular design and robust engineering make it well-suited for the diverse and challenging conditions of the Indian commercial vehicle landscape.
