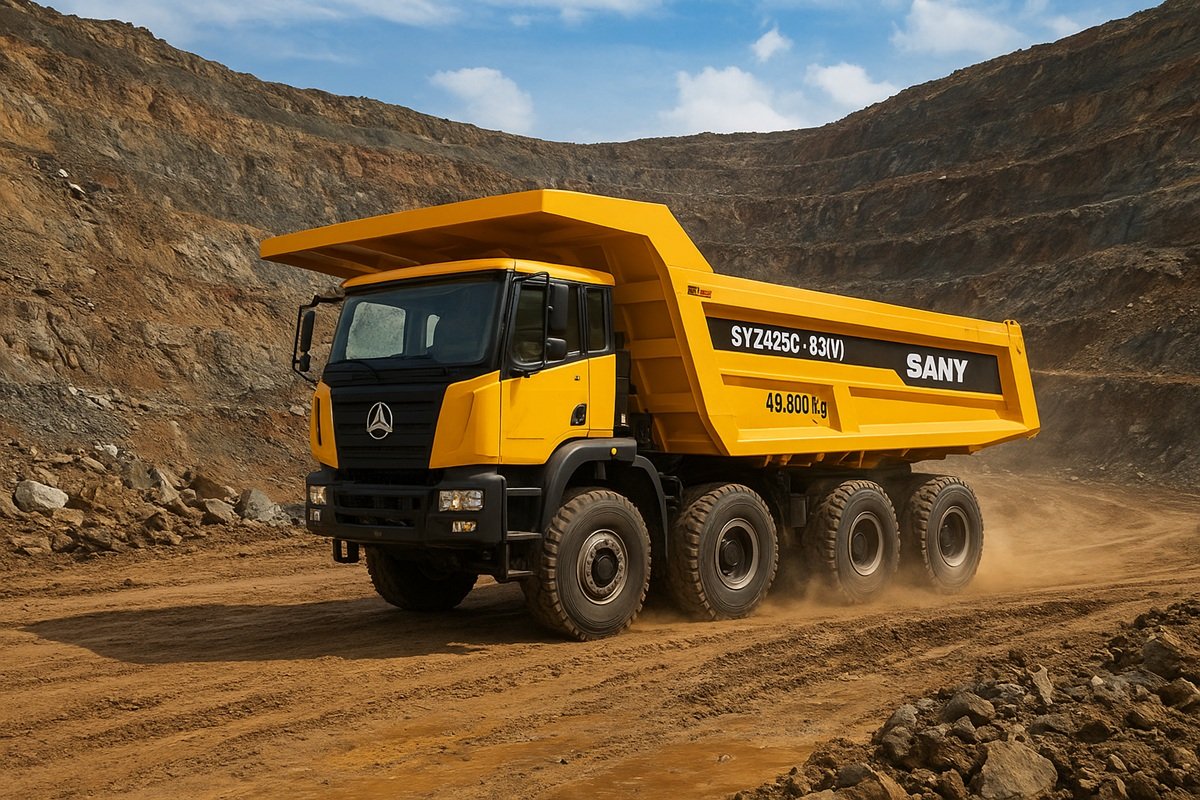

Sany SYZ425C-8S(Ⅴ) The Heavy Duty Rigid Dump Truck

SANY SYZ425C-8S(Ⅴ) — Heavy-Duty Rigid Dump Truck Built for Demanding Haulage.

Sany SYZ425C-8S(Ⅴ) Modern infrastructure, mining, and large scale construction projects increasingly demand dumpers that combine enormous capacity with operational efficiency, durability, and safety. The SANY SYZ425C-8S(Ⅴ) answer that call. Designed as a large rigid dump truck, this model is aimed at mining/quarry operations, large earthmoving works, and sectors where transporting heavy loads over rough terrain is daily business.

Key Specifications and Powertrain

Engine & Power: The SYZ425C-8S(Ⅴ) is powered by a DEUTZ D12C5 series diesel engine with displacement around 12,120 cc. It delivers roughly 360 kW of power.
Torque: Peak torque clocks in at about 2,200 Nm, which ensures strong hauling capability even in steep grades or heavy load conditions.
Fuel & Emissions: It meets Euro V / China V (Ⅴ) emission norms, which shows it is built to adhere to stricter environmental regulations. The fuel tank capacity is large (~600 litres) given the kinds of distances and loads involved.

Load Capacity, Dimensions, and Structure

Gross Vehicle Weight (GVW): Approximately 42,000 kg.
Payload Capacity: It can carry more than 49,800 kg of payload. That puts it in the heavy category of tipper carriers.
Axle/Wheel Configuration: It is a 10-tyre rig (10 wheels), in an 8×4 axle configuration—meaning four axles, two of which are driving/loaded, etc.—designed for good load distribution and control.
Chassis & Body: It uses a rigid frame with a heavy-duty cabin (“day cabin”) that tilts for engine access. Body options include box-body (e.g. tipper) configuration. The loading platform measures approximately 6200 mm in length, ~2300 mm width, height ~1800 mm; allows substantial bulk volume.
Dimensions: Overall length is about 9340 mm, width around 2540 mm, height approximately 3665 mm. Wheelbase (front to rear axle spacing) is noted as 2000 mm (front axle spread) with standard arrangements for the load deck and rear axles.

Transmission, Brakes & Suspension

Gearbox / Transmission: The model uses a manual transmission, specifically the FAST 12JSDX240TA gearbox, known for handling high torque loads.
Brakes & Safety: Equipped with drum brakes and includes ABS for safer braking under heavy load. Given the steep loads and mass carried, ABS becomes critical on long declines and adverse road surfaces.
Tyres & Ground Clearance: The tyre size is something like 315/80R22.5 both front and rear, typical for heavy trucks. High ground clearance plus rigid axles help in off-road or semi off-road conditions.

Design, Cabin & Driver Comfort

Sany SYZ425C-8S(Ⅴ) The cabin is a day-cabin design. It is tiltable, facilitating easier engine maintenance and inspection access. It seats D+1 (driver + one), with standard seating.
Driver safety features include seat belts, ABS as mentioned, and other standard features for the heavy commercial vehicle segment.
The body is built to be durable, the chassis is designed to take heavy stresses. Box-body options are standard; the truck deck is suitable for tipping/dumping depending on the configuration. Heavy-steel usage, robust suspensions, strong leaf springs and rigid frames are implied by the class.

Operational Capabilities & Performance

Sany SYZ425C-8S(Ⅴ) The combination of high torque and large fuel capacity means it can manage long hauls without frequent refuelling. It is suitable for operations in remote mining sites, large earthworks, quarries, and projects where load volumes are high and roads may be rough.
Fuel efficiency in such vehicles is seldom the prime measure, but SANY has introduced measures in similar models to improve efficiency: strong “power chains” (engine-transmission-axle combinations) that reduce losses, using high quality materials to lower weight (where possible), etc. For example, some SYZ428C-8S (Ⅴ) models have claims of improving climbing ability by 5% and reducing fuel consumption by ~3%, which suggests similar design philosophy may influence SYZ425C-8S.

Use Cases & Applications Sany SYZ425C-8S(Ⅴ)

Mining & Quarrying: Hauling overburden, rock, earth, and other materials. The large payload and strong torque let it carry large volumes, improving cycle productivity.
Heavy Construction & Infrastructure Projects: Moving materials like sand, gravel, concrete aggregates, demolition debris across large distances.
Aggregate Transport: From crusher to site, transporting bulk materials.
Regional Haulage: On roads that may not be fully paved or may include gradients, mud, or rough patches; the heavy-duty layout makes it suitable.

Competitive Advantages & Weaknesses Sany SYZ425C-8S(Ⅴ)

Strengths:

High Payload vs Cost Efficiency: The ability to carry nearly 50 tons payload gives economies of scale—fewer trips for same work.
Robust Engine & Powertrain: The DEUTZ engine is proven; paired with a strong gearbox and axles, offers reliability.
Regulations Compliance: Being Euro V / China V helps in regions with stricter emission standards—allowing wider deployment without penalty or compliance issues.
Durability and Maintenance Access: Features like tiltable cabin, standard components like ABS, standard tyre sizes, etc., help in easier maintenance.

Challenges:

Fuel costs can still be high; diesel prices and availability in remote areas can impact operating cost.
Weight when empty (kerb weight) is significant; may lead to wear on roads or higher toll/costs in some jurisdictions.
The size and turning circle may limit maneuverability in narrow or congested sites.
Initial purchase cost may be high; return on investment depends much on utilization, load cycles, maintenance discipline.

What It Means in the Industry

The Sany SYZ425C-8S(Ⅴ) represents the continuing push of manufacturers toward bigger, more efficient, more compliant heavy dump trucks. For companies involved in large infrastructure or mining, such a machine can be a core element of fleet modernization. It allows fewer units to move larger volumes, which reduces overhead (drivers, maintenance) per ton of material moved. Environmental regulations are pushing manufacturers to build engines meeting Euro V or equivalent norms; this model shows SANY is investing to stay ahead of regulation curves.

Also, given large deployment of such vehicles, after-sales, spare parts infrastructure, serviceability, and operator training become critical. Trucks of this size are only as useful as their uptime.

Final Thoughts

The Sany SYZ425C-8S(Ⅴ) is a heavy-duty rigid dump truck engineered to meet some of the toughest haulage requirements in mining, construction, quarries, and infrastructure. With a powerful engine, high payload, modern emission compliance, and robust build, it offers a package designed for high usage, long life, and strong performance.

For operators looking for a long-haul tipper that can handle large payloads without compromising on regulatory compliance and durability, the SYZ425C-8S(Ⅴ) is a serious contender. Making the most of such equipment will depend heavily on consistent maintenance, proper driver training, and operating in environments suited for large rigs. But in many settings, this truck can significantly improve productivity and reduce cost per ton hauled.

Last Updated On 29 September 2025.
